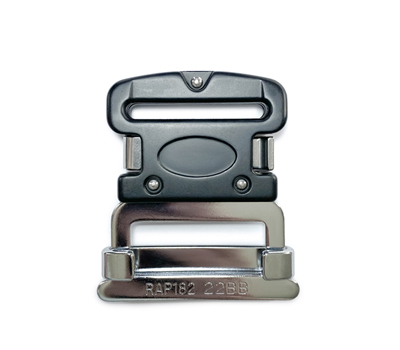

KLB45 Harness Buckle
Part Codes

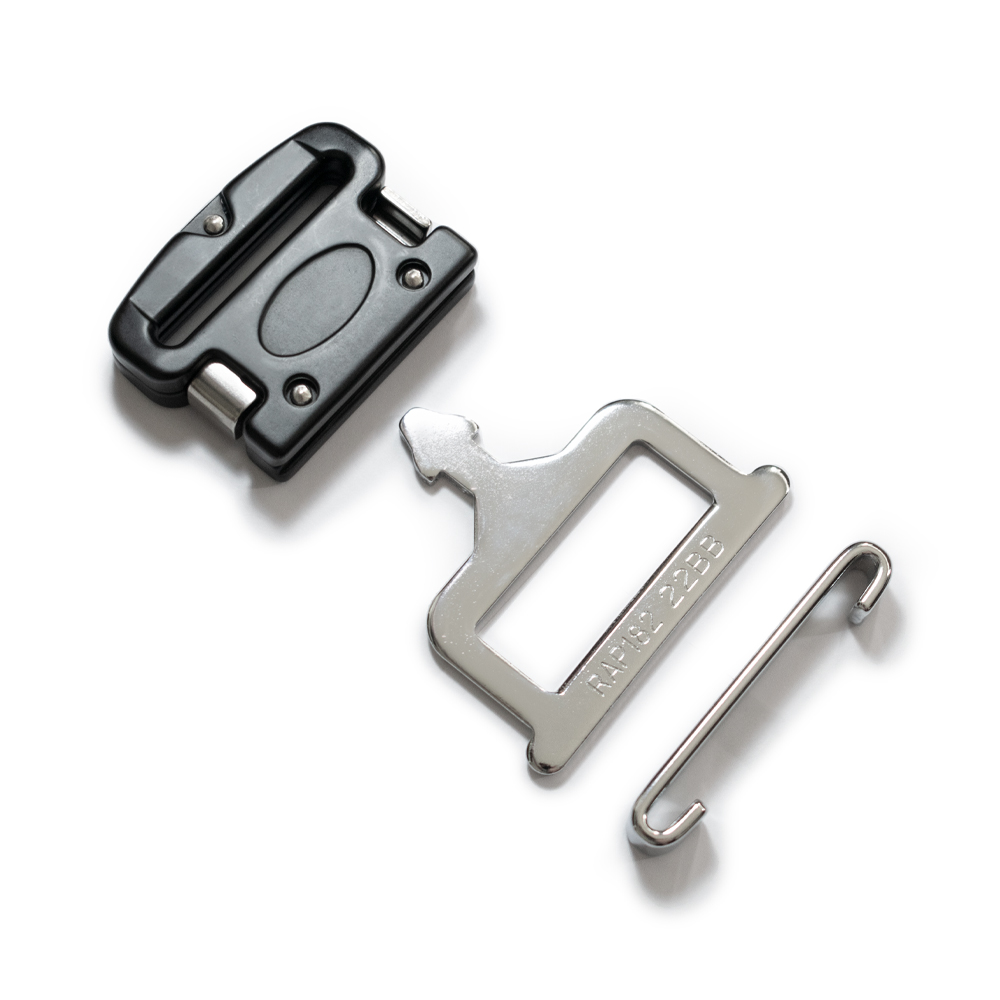

- KLB45A – Buckle with sliding bar adjuster
- KLB45B – Buckle with 3-bar slide adjuster
Key Features
- Weight: 120 g
- Overall Dimensions: 76 × 68 × 15 mm
- Minimum Breaking Strength (MBS): 20 kN
- Webbing Compatibility:
- Designed for use with 45 mm webbing
- Design & Operation:
- Features two low-profile release buttons
- Buckle releases only when both buttons are depressed simultaneously, reducing the risk of accidental opening
- Standards & Compliance:
- Buckle functionality complies with Requirement 5.2.5 of EN 358
- Static load test complies with ANSI Z359.12
- Customisation:
- Custom laser marking available at additional cost
